Enterprise Manager logoEM: Databases/SQL: Databases > Query Analysis

Description

The Databases, Query Analysis tab provides an interface for the administrator to analyze information about all of the queries run on the selected database. This information can be used to help determine if the database tables are indexed in a way that allows the SQL engine to effectively optimize the most common queries run against the database.

Note: selecting a database from Databases name list, opens its configuration interface, and enabling access to Query Analysis.

Location

Enterprise Manager logoEM Navigator → Databases/SQL → Databases → Query Analysis

In BBj 12.0 and higher, the administrator determines that it would be beneficial to add or remove an index on a particular combination of columns in the list, this can be done right from the user interface.

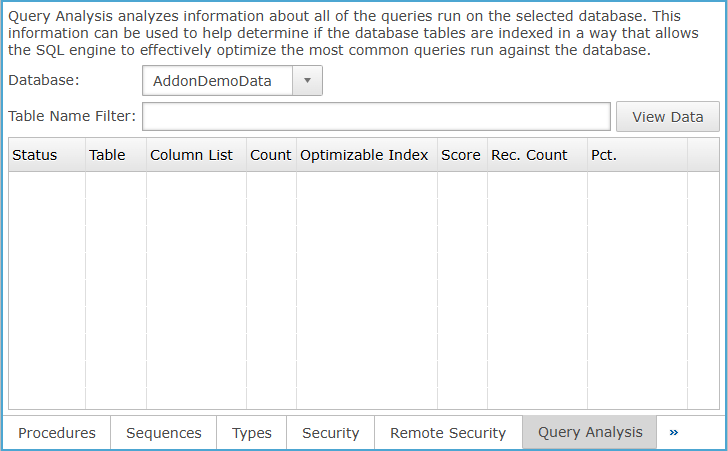

Database Query Analysis

Query Analysis analyzes information about all of the queries run on the selected database. This information can be used to help determine if the database tables are indexed in a way that allows the SQL engine to effectively optimize the most common queries run against the database.

Query Analysis Settings

Settings Description
Database Choose the database from the dropdown and click View Data to load the selected database’s data in the column section.
Table Name Filter Filters tables by name before applying the filter criteria to query analysis results.
View Data When clicked, loads the selected database’s query analysis data into the results table.

Query Analysis Column Section

Lists query analysis results by status, table, columns, counts, index optimization, score, and percentages.

Query Analysis Settings

Settings Description

Status

Displays the status of query analysis on a specific table.

Icon Status


Indicates there is no table analysis data available for the table.


Indicates table analysis was successfully run on this table and no alerts were discovered.


Indicates table analysis was successful, but there is some information available that may be useful to the administrator or developers about the table.


Indicates warning alerts generated for the table or that table analysis should be run again because there are new analysis features available in the current version of BBj installed.


Indicates a critical problem of some kind. The table may still function in queries, but analysis either failed to run due to an error or there were critical alerts discovered with the data in the file during table analysis.
Indicates a FULLTEXT index is defined for the table to support text-based search operations on character data fields.
Indicates the table data file is encrypted and requires proper access configuration.
Table Name of the table.
Column List List of columns (in index segment order) that were included in the WHERE clause that could have possibly been used for optimization if they were indexed.
Count Number of times Query Analysis has been run on that table.
Optimizable Index

Whether this combination of columns has an index on them or not.


Score Is the number of queries that have been run that used that combination of columns in their WHERE clause.
Rec. Count Record count.
Pct. (Percentage) A score that relates to the how often this combination of columns was used.

When a statement is executed that includes a WHERE clause, it updates the underlying information used to populate this table. For example, the following statement will update information for the "LAST_NAME, FIRST_NAME", "FIRST_NAME, LAST_NAME", "FIRST_NAME", and "LAST_NAME" items in the list:

SELECT * FROM customer WHERE last_name = 'Doe' and first_name = 'John'
