EM: Web - App Deployment > SLL Configuration

Description

In BBj 17.0 and higher, SSL Configurations allows multiple SSL ports to be defined for the integrated Jetty Web Server, requiring separate keystores, which Enterprise Manager enables administrators to configure and manage accordingly.

Location

EM Navigator → Web → App Deployment → SSL Configurations

Toolbar

Button	Function
	Adds a new SLL Port.
	Removes/deletes selected SLL port(s) from the system.
	Refreshes the displayed list of applications and their status.
	Creates a new folder within the current displayed directory.
	Enables to choose a folder/file from your local system.

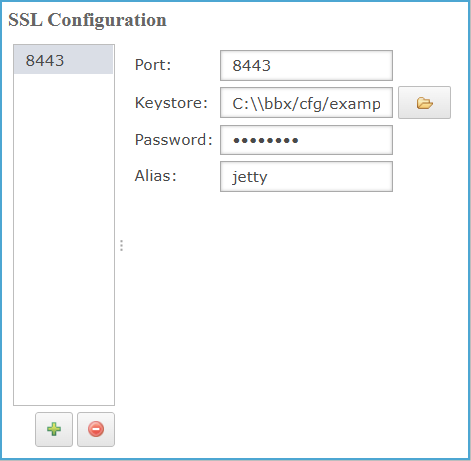

SLL Configuration

The SSL Configurations pane displays configured SSL ports and allows administrators to define port numbers, keystore locations, passwords, and aliases for managing secure Jetty Web Server connections.

SLL Configuration Settings

Settings	Description
Port	The HTTP Port number.
Keystore	Clicking the icon opens a file browser to navigate local directories. Users can create a new folder by clicking icon, name it, confirm creation, select the folder or file, enter a file name if required, and click Open to display the Keystore path field.
Password	Password for the keystore.
Alias	The Alias within the keystore.

Add a New Port

Clicking the icon opens the Add New Port dialog, where administrators specify an SSL port number for HTTPS access and confirm with OK to add the port to the SSL configuration.

The SSL port binding happens at the transport layer in the HTTPS protocol and there is no need to specify which context a port belongs as the transport-layer will validate the incoming packets before handing them for processing.

Advanced SSL Configuration

The integrated Jetty server has disabled protocols SSLv3, TLSv1 and SSLv2Hello because they present security risks. If you want to disable any additional protocol or cipher then this can be done by editing jetty.xml.

Locate the ssl-config entry and embed within exclude-protocol and exclude-cipher elements. Here is an example:

<ssl-config alias="jetty"

keystore="/opt/basis/cfg/example.jks"

keystore-password-enc="B1NhCfk1XmL0/u1WA8aoKQ=="

port="8443">

<exclude-cipher>TLS_DHE_RSA_WITH_AES_128_CBC_SHA</exclude-cipher>

<exclude-protocol>TLSv1.1</exclude-protocol>

</ssl-config>

About the Keystore

SSL configuration requires a keystore. The example .jks keystore is supplied with every BBj install and is a great reference for building custom keystores. BBj requires at least two passwords for the keystore and another for the specific certificate used by Jetty. Examine the example.jks using the keytool command provided with Java.

keytool -v -list -keystore example.jks

Keytool creates new keystores as well. Generate a fresh key pair with this command:

keytool -keystore mykeystore.jks -alias jetty -genkey -keyalg RSA

Then, generate a certificate request with this command:

keytool -certreq -alias jetty -keystore mykeystore.jks -file jetty.csr

Send the certificate request to an SSL provider, and they will send back a public key guaranteeing your authenticity. The next step is to import the provider’s response, with this command:

keytool -keystore keystore -import -alias jetty -file response.crt

Finally, configure the keystore and passwords as appropriate in Enterprise Manager.
