SQL Custom Value Processors – Overview

What Is a Value Processor?

A Value Processor is a custom Java class that teaches the BBj SQL engine how to interpret the raw bytes stored in a BBx/BBj data file and expose them as a well-typed, standard SQL data type. Without a value processor, every column value is returned in the same native form that it is physically stored on disk — usually a string or numeric value. With a value processor in place, the SQL engine transparently converts those raw values on their way in and out of the engine so that consumers always see a proper SQL type such as BOOLEAN or DATE.

Value processors are implemented by extending the abstract base class com.basis.startup.type.sql.ValueProcessor and packaging the resulting class in a JAR that is made available to the BBj SQL engine.

The Problem: Legacy Data Encoding

The BBj SQL engine reads data from BBx string-template data files. Each record is stored as a series of raw bytes interpreted by a string template — a schema definition that describes the layout of each field as a sequence of typed slots. The native BBx types (C, N, I, etc.) map directly to SQL types such as CHAR, NUMERIC, and INTEGER.

Over the decades, many applications have used these available types creatively to represent domain values that have no direct native counterpart. Common examples include:

Logical Meaning	Typical Raw Storage	Native SQL Type Returned Without a Processor
Boolean true/false	`"Y"` / `"N"` in a `C(1)` field	`CHAR(1)`
Boolean true/false	`1` / `0` in a numeric field	`NUMERIC`
Calendar date	Julian day number in a numeric field	`NUMERIC`
Calendar date	`"YYYYMMDD"` string in a `C(8)` field	`CHAR(8)`

Historically, developers had to retrieve these raw values and perform the interpretation in application code. This created several problems:

Every application that touched the data had to embed its own conversion logic.
SQL expressions such as WHERE active = TRUE were impossible; only raw-value comparisons like WHERE active = 'Y' worked.
JDBC metadata reported inaccurate column types to client tools and ORMs.
The semantic intent of the data was completely invisible to the SQL layer.

Value processors solve all of these problems in one place — at the SQL engine itself — so that every caller benefits automatically, with no changes to application code.

How Value Processors Work

A value processor sits between the raw data in the data file and the value returned to the SQL client. It also works in reverse when data is being written.

Reading (SELECT):

Raw bytes

on disk

→

String template

parse

→

Value Processor

computeReturnedValue()

→

SQL result set

(typed value)

Writing (INSERT / UPDATE):

SQL value from

INSERT / UPDATE

→

Value Processor

computeRawValue()

→

String template

encode()

→

Raw bytes

on disk

A value processor is linked to a Type Definition in the BBj data dictionary. A type definition is a named schema object that can be assigned to one or more columns in a table. When a column has a type definition that references a value processor class, the SQL engine automatically instantiates that processor class (using its public default constructor) and invokes it for every read and write operation on that column.

The ValueProcessor Abstract Class

Every value processor must extend com.basis.startup.type.sql.ValueProcessor and implement the following abstract methods:

Method	Direction	Purpose
`Object computeReturnedValue(Object p_value)`	Read	Converts the raw value from the data file into the desired SQL type object.
`Object computeRawValue(BBjSQLLiteral p_value)`	Write	Converts an SQL-typed value back into the raw form to be written to the data file.
`int getSqlType()`	Metadata	Returns the `java.sql.Types` constant for the SQL type this processor produces (e.g., `Types.BOOLEAN`).
`String getDisplayName()`	Metadata	A short, human-readable name shown in Enterprise Manager when selecting a processor for a column.
`String getDescription()`	Metadata	A short description shown alongside the display name in Enterprise Manager.
`boolean isLexicallyOrdered()`	Optimization	Return `true` if the raw values sort in the same order as the processed values, allowing the SQL engine to use indexes for range queries.

Discovery and Loading

The SQL engine loads a value processor class by name at runtime using a class loader that is configured via the database's SQL Factory SSCP property. The class name is stored in the type definition record in the data dictionary. When the SQL engine opens a table whose columns reference a type definition, it instantiates the processor using the class's public default (no-argument) constructor.

Note: Value processors operate at the SQL engine level only. They do not affect how data is read or written by BBj programs that access files directly using the native READ and WRITE verbs. The raw bytes on disk are always unchanged; only the SQL representation is transformed.

Built-In Value Processors

BBj ships with the following value processors out of the box:

Class Name	Display Name	Description	SQL Type Returned
`YNBooleanValueProcessor`	Boolean Y/N Processor	Converts a `C(1)` string field whose value is `"Y"` or `"T"` to SQL `true`, and `"N"`, `"F"`, or empty to SQL `false`.	`BOOLEAN`
`BaristaValueProcessor`	Barista Element Type Processor	Processes Barista application element types. Handles checkbox boolean fields (converting configurable true/false strings to `true`/`false`) and OEM date formats such as Julian day numbers and YYYYMMDD strings, converting them to SQL `DATE` values.	`BOOLEAN` or `DATE`

When Should You Use a Value Processor?

Consider writing a custom value processor when:

You have boolean-like data not covered by the built-in processors. For example, a numeric column that stores 1 for true and 0 for false.
You have date or time data stored in a proprietary format. If your application encodes dates in a way not handled by BBj's built-in processors, a custom processor can decode them on the fly.
You want to present type-accurate metadata to JDBC clients. Reporting tools, ORMs, and BI platforms read JDBC column metadata. Returning the correct SQL type helps these tools handle your data correctly without additional configuration.
You want SQL expressions to use the logical type. Once a column is processed as BOOLEAN, SQL expressions like WHERE active = TRUE work as expected rather than requiring knowledge of the raw storage encoding.
You need a single, centralized conversion layer. Conversion logic in a value processor lives in one place rather than being duplicated across every application or report that reads the same table.

High-Level Usage Summary

Using a custom value processor involves four high-level steps:

Write the Java class — Extend ValueProcessor and implement the six required methods. Your class must have a public default (no-argument) constructor.

Compile and package the class into a JAR file.

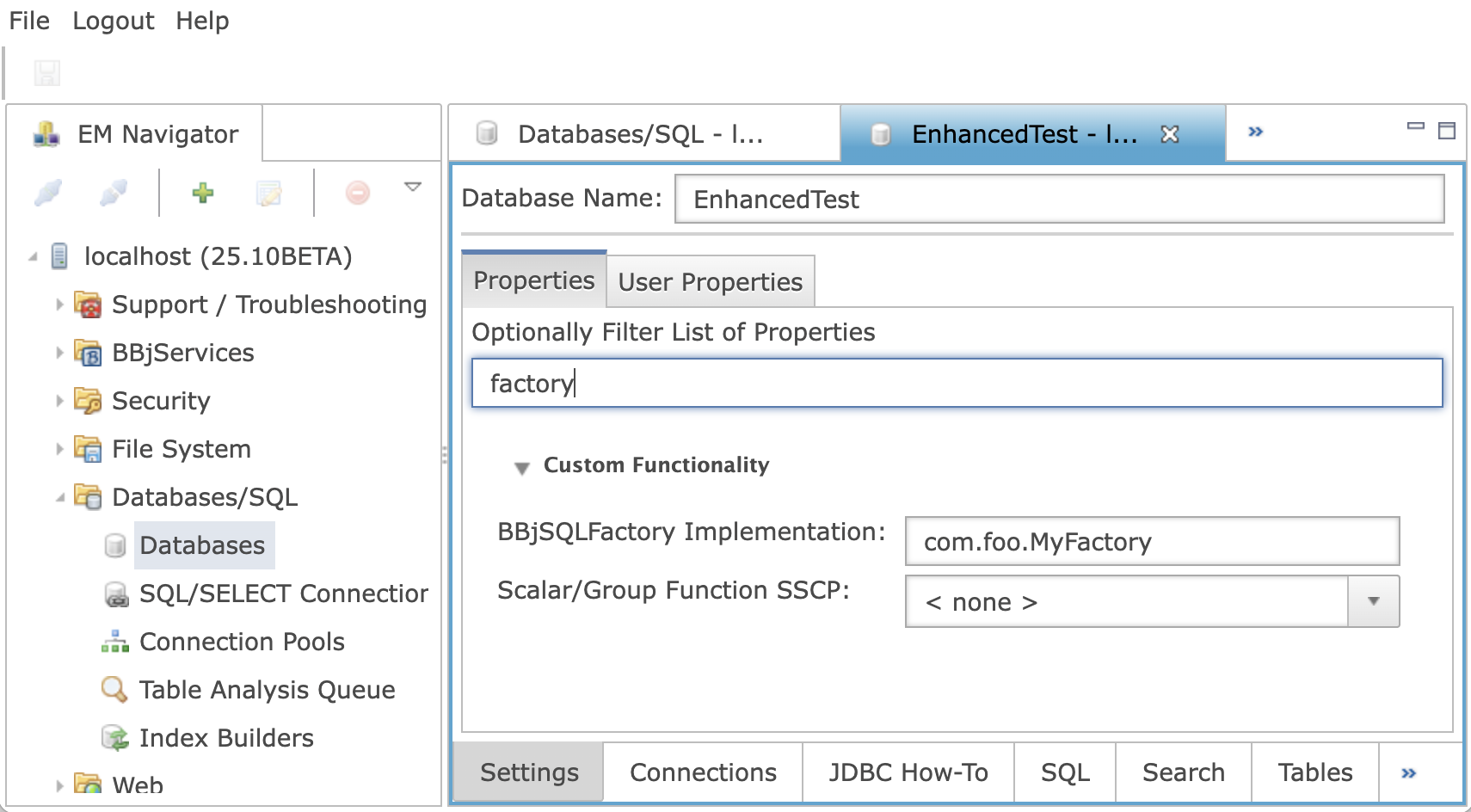

Register the JAR with BBj — Create a Session Specific Classpath (SSCP) entry in Enterprise Manager that points to your JAR, then set the target database's Scalar/Group Function SSCP property (SQL_FACTORY_SSCP) to that SSCP name.

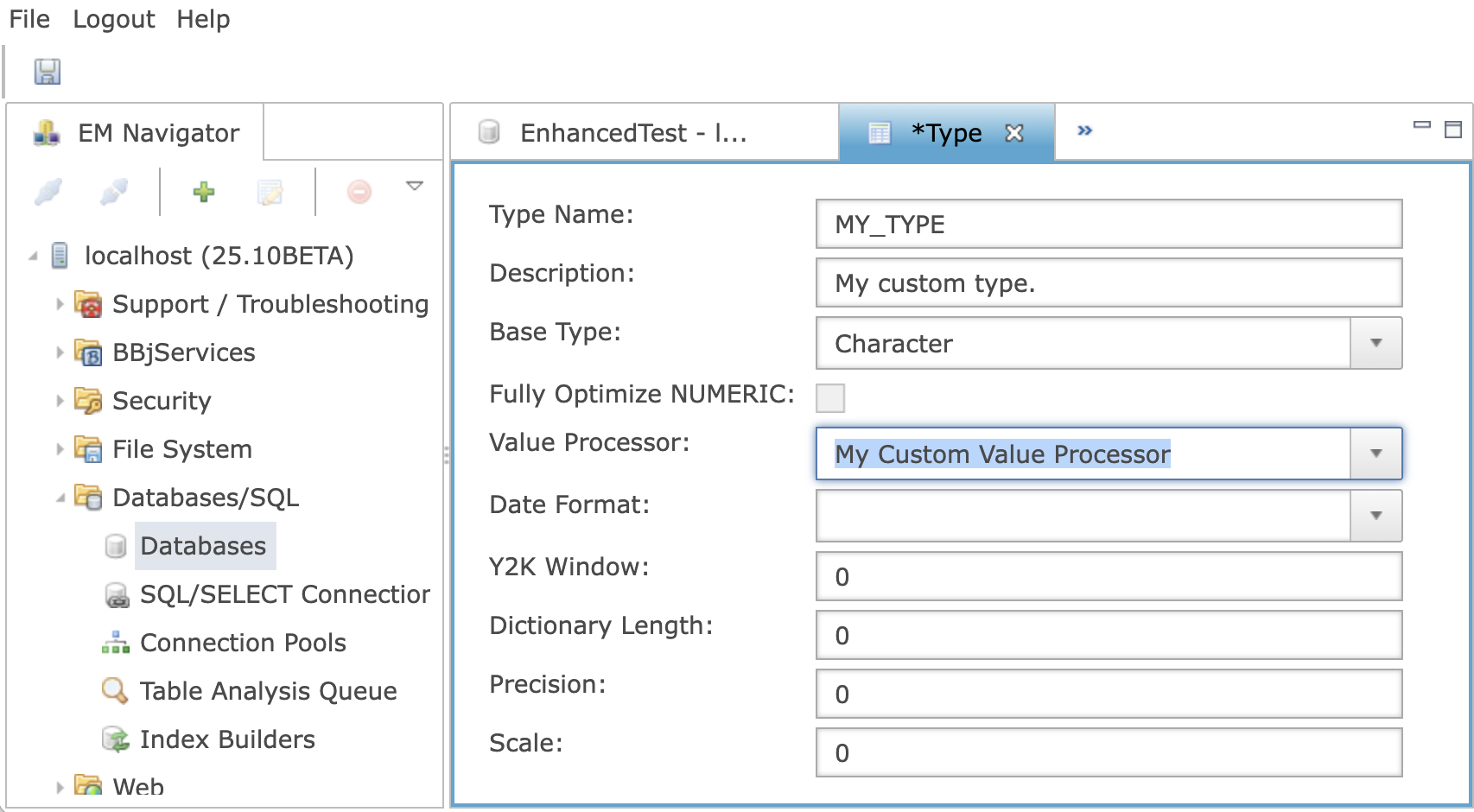

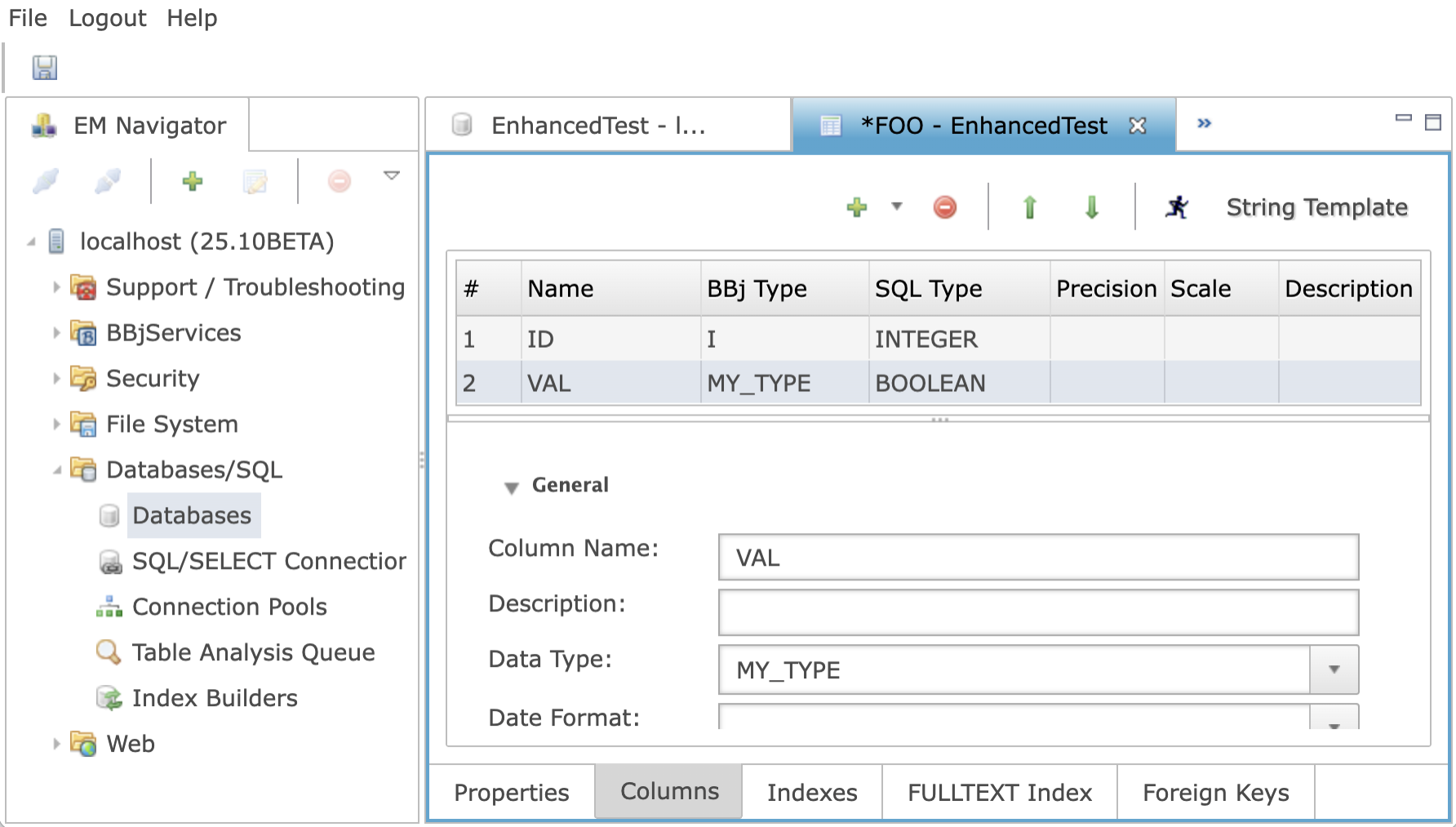

Assign the processor to a column — In Enterprise Manager, open the type definition for the target column and select your processor from the list.

For complete technical details on each step, see: Custom Value Processors – Reference. For a hands-on walkthrough, see: Tutorial: Creating a Numeric Boolean Value Processor.
